Synthetic Vision System for Crisp, Clear Imagery in Real-Time

The terrain imagery utilizes topographical coloring similar to that used on aviation sectional charts. Hills and mountains appear in shades of green and brown while oceans and other large bodies of water are colored blue. Special shading on the digitized terrain and the grid overlay that conform to the landscape on the synthetic world help you get a sense of movement in flight, particularly when flying near ground.

Universal Vision-1 SVS with Views for Pilot and Wingman

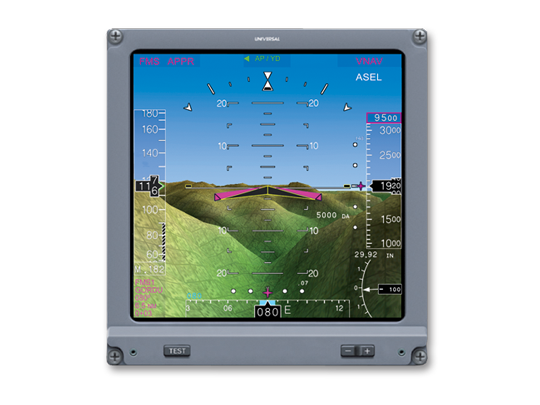

Vision-1 “Egocentric” pilot’s view is designed for Primary Flight Display (PFD) and Electronic Attitude Director Indicator (EADI) applications. It provides the pilot with a perspective as if looking out the flight deck window. The system maintains the standard foreground symbology and replaces the blue/brown background with imagery depicting the terrain in real-time complete with pitch and roll orientation.

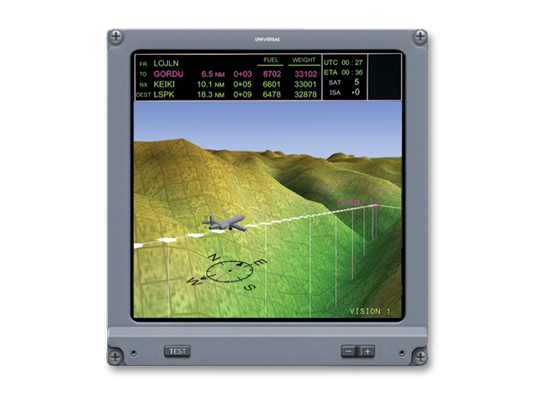

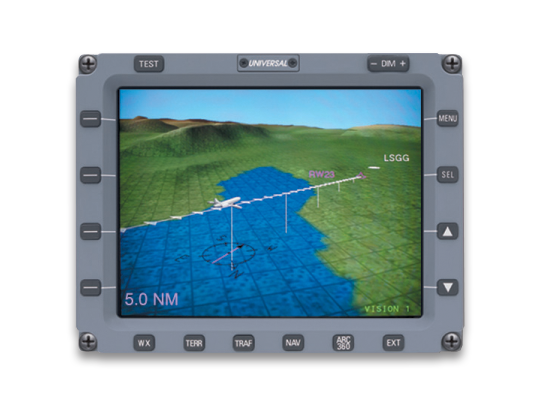

The unique “Exocentric” wingman’s view provides a 3-D view of your aircraft with respect to the flight path and surrounding terrain. The perspective is as if from a camera situated behind, above and to the right of the aircraft.

The low contrast grid lines are oriented East/West and North/South (True). The E/W grid lines are at an interval of 0.25 NM and the N/S grid lines start at 0.25 NM at the Equator and become narrow as you reach the Poles.

Flight plan and vertical profile depiction are derived from FMS flight plan waypoint altitudes. Platforms show direction of flight.

White poles extending to the ground provide a perspective of the flight plan relative to surrounding terrain. The poles are spaced at 1 NM intervals within 10 NM of the aircraft and 10 NM thereafter.

A compass symbol, referenced to magnetic north, is displayed 1,000 feet directly below the aircraft. A magenta line depicts the FMS selected course and a black triangle for the aircraft heading.

Hardware

• Size: 2 MCU

• Weight: 9.6 lbs (4.7 Kg)

• Cooling: Passive cooling fan

• Power: 18-32 VDC

• Environmental categories: DO-160D

• Software Certification: DO-178B Level C

• Criticality level: Major

• TSO: C113a Airborne Multipurpose Electronic Displays

Flight Displays

The dynamic VGA video output can be displayed on the EFI-890R, EFI-890H, MFD-890R, MFD-890H, MFD-640 or EFI-640 navigation displays.

Flight Management

Overlay of the flight plan from the Universal Avionics Flight Management System (FMS), along with deviation indicators, trend vectors and compass symbol with course and heading information contribute to provide you with a unique, increased level of situational awareness.

The terrain database is stored in solid-state memory within the Vision-1 computer, which is housed in a remote-mounted, 2-MCU sized Line Replaceable Unit (LRU).
